BY-L8 8-Bin Garbage Collection Truck for Urban Waste Transport

Why “8 Bins” Has Become a Key Metric in Municipal Vehicle Procurement

On the front lines of urban sanitation, “how many bins can it carry in one trip” is often the most direct consideration for sanitation departments and property management companies when selecting a garbage collection truck. The number of bin slots directly determines single-trip transport efficiency, labor cost allocation, and the density at which daily collection routes can be planned. For scenarios with high volumes of barreled waste—such as residential communities, hotels, canteens, and hospitals—an 8-bin garbage collection truck often represents the optimal balance between efficiency and cost, offering sufficient single-trip capacity without the bulkiness of a large compaction garbage truck struggling through narrow community roads and back alleys.

The BY-L8 flatbed bin transport truck from Baiyi Intelligent Equipment is purpose-built for this exact niche. Featuring an open flatbed design with railings, a single vehicle can carry a full load of 8 standard 240L garbage bins, fully aligning with the “bin-exchange collection model” widely adopted across cities today.

Integrated 3D Modular Design: Balancing Appearance and Practicality

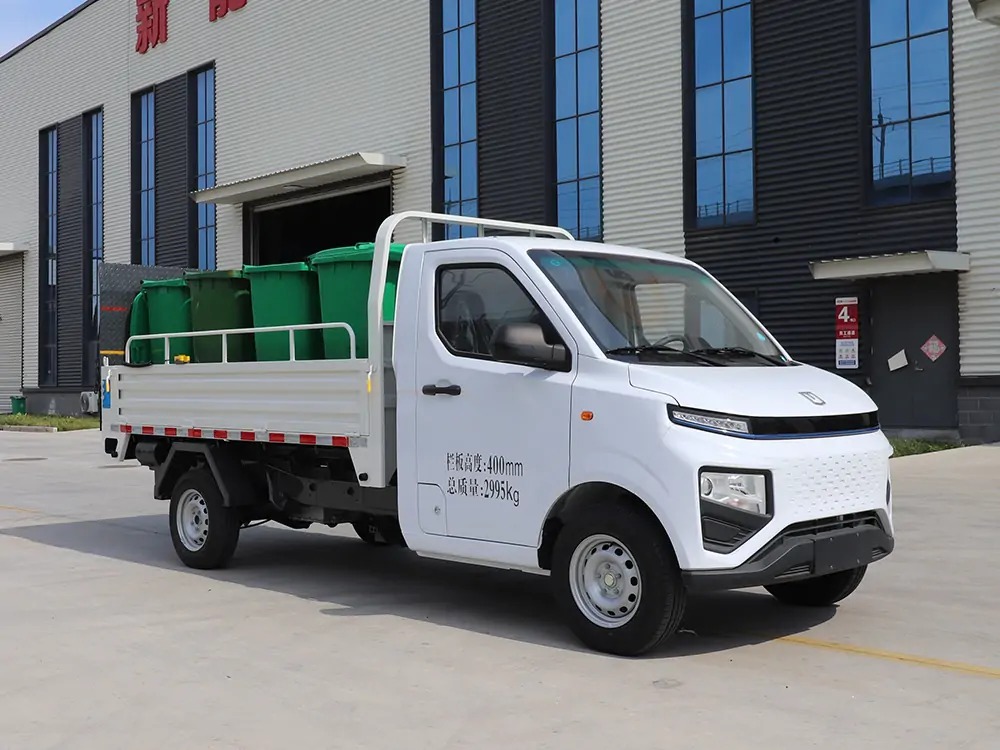

As shown in the field photographs, the BY-L8 features a clean, streamlined white body with a modern front-end design, paired with a railed, open flatbed. Visually, it presents a professional sanitation vehicle image without the bulky, enclosed look of traditional garbage trucks. According to the product technical documentation, this model adopts a 3D forward-thinking modular design philosophy, resulting in a sturdy, durable structure with complete functionality and notable advantages in interchangeability, reliability, and safety.

The flatbed floor is constructed from high-quality checkered steel plate, which increases friction between the garbage bins and the floor surface, delivering excellent anti-slip performance. The overall bed structure uses large-section bent steel columns combined with a rectangular steel tube frame—a design that balances aesthetics with practicality, visible in the detailed railing and side-panel construction captured in the photos.

Wireless Remote-Controlled Hydraulic Tailgate for Single-Person Operation

For a high-frequency daily-use vehicle like the 8-bin garbage collection truck, loading and unloading efficiency often determines the total duration of an entire collection route. The BY-L8 is equipped with a wireless remote-controlled lifting tailgate system, enabling truly single-person operation—the operator can independently complete the entire bin loading and unloading process without any assistance.

The tailgate lifting mechanism uses a four-bar linkage design, offering a mechanically stable and reliable structure. It rationally applies the principle of parallel motion within the linkage mechanism, allowing the tailgate to lift horizontally. This design significantly improves bin-loading efficiency, with simple operation, a straightforward workflow, and a high degree of automation. According to the technical specifications, the tailgate has a load capacity of 300 kg, a lifting time of just 15 seconds, a lowering time of 8 seconds, and a rotation angle of up to 90°—capable of meeting the demands of frequent, high-volume loading operations.

Pure Electric Drive, Purpose-Built for Urban Alleys

The BY-L8 is powered by a 72V electric motor drive system, equipped with a Tianneng 72V 200AH maintenance-free lead-acid battery, delivering a maximum driving range of 80 km and a top speed of 30 km/h. While this power configuration doesn’t prioritize high speed, it precisely matches the low-speed, high-frequency, short-radius operating characteristics required of garbage collection trucks in urban centers, residential communities, and back alleys.

With a minimum turning radius of just 5.5 meters, the vehicle demonstrates excellent maneuverability and passability through narrow community roads and old city district alleys—which, as shown in the photos, represents the greatest practical advantage of this type of compact sanitation vehicle over traditional heavy-duty garbage trucks.

Structural Safety: Comprehensive Protection from Frame to Braking System

The frame is built from special truck-grade steel plates, with longitudinal and transverse beams assembled using an integral cold riveting process, providing high strength, strong load-bearing capacity, and resistance to deformation. It undergoes electrophoretic rust-prevention treatment for excellent corrosion resistance. The cab is fully enclosed with a tempered glass front windshield, and panoramic glass on the front and both sides provides a wide field of vision, ensuring comfortable driving and convenient operation.

The braking system is equipped with a high-power vacuum brake booster pump, and with a 2-ton front axle and 3-ton rear axle configuration, the vehicle delivers strong overall load-bearing capacity. The tires are well-known brand 185/R14 LT heavy-duty vacuum tires, offering strong load capacity, wear resistance, low risk of air leakage, and an extended service life to ensure durability under daily high-frequency operation.

Application Scenarios: Full Coverage from Urban Districts to Hospital and Canteen Settings

The BY-L8 flatbed bin transport truck is currently widely used for collecting and transporting barreled waste across urban central districts, residential communities, hotels, canteens, hospitals, and similar settings. For property management companies and sanitation service enterprises, this type of 8-bin garbage collection truck effectively bridges the gap between community waste-sorting collection points and transfer stations, making it an indispensable part of a refined urban sanitation management system.

As a manufacturer of high-end electric sanitation equipment with over 10 years of industry experience and a 130,000-square-meter R&D and production base, Baiyi Intelligent Equipment provides the BY-L8 with a comprehensive quality control system backed by international certifications including CE, ISO 9001, ISO 14001, and ISO 45001—ensuring that every vehicle delivered to customers meets reliable performance and durability standards.
