FUNCTION DISPLAY

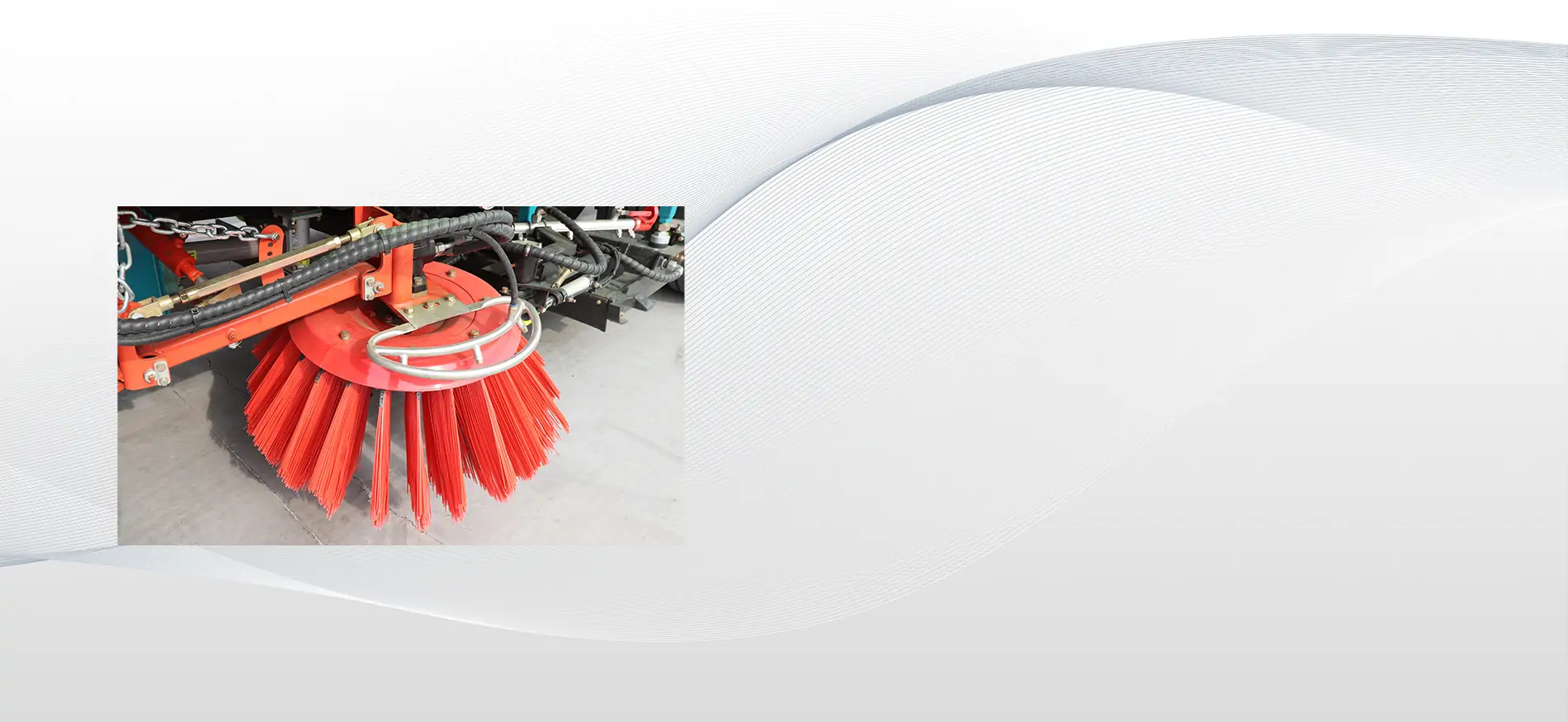

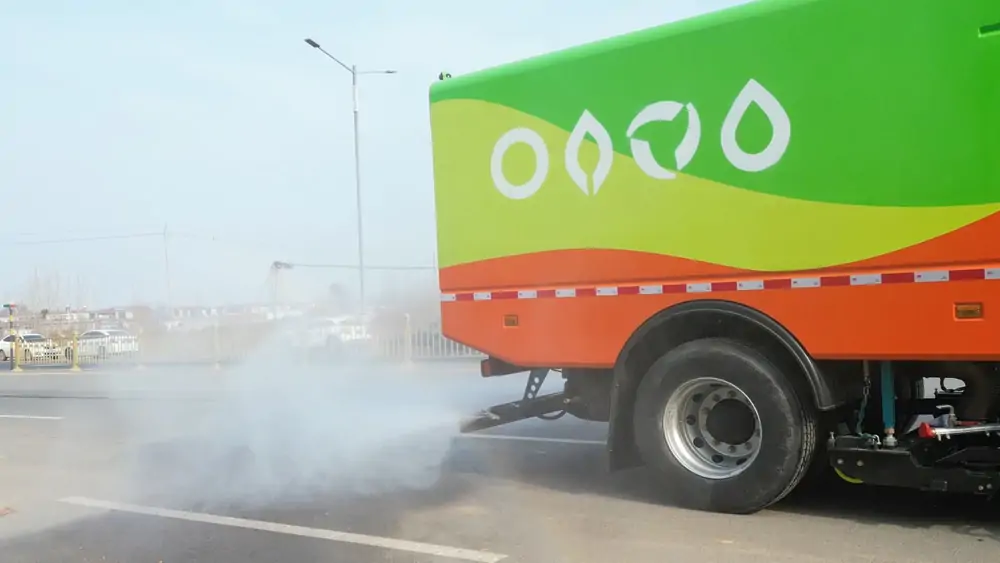

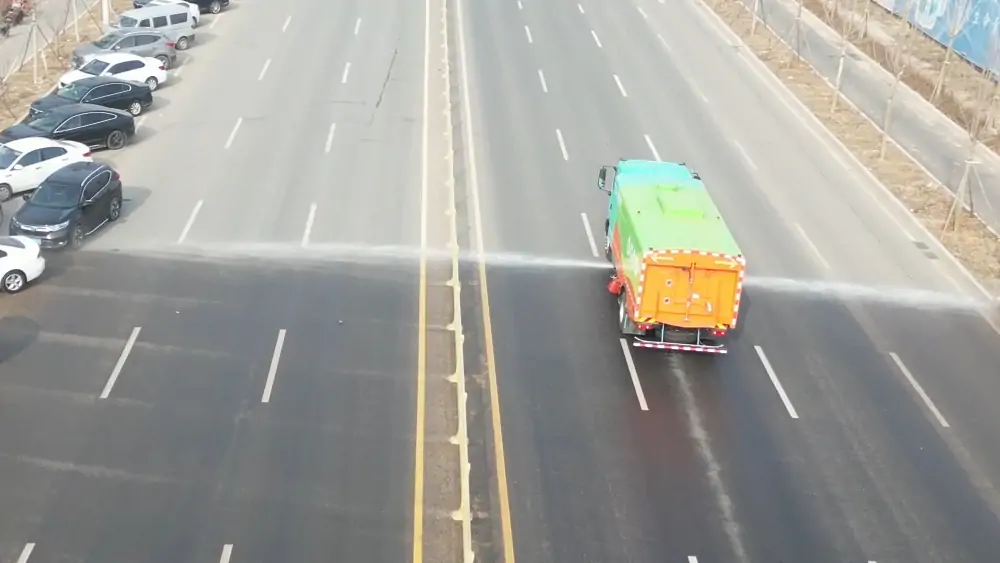

Thorough Sweeping: Zero-Blind Spot Coverage
Stubborn Stain Removal: Instant Road Refreshment
High-Efficiency Cleaning: The All-Rounder
Green Sanitation: “Wash-and-Dry” for the Environment
PRODUCT VIDEO
Technical Paramenters
| PROJECT NAME | UNIT | PARAMETER |
|---|---|---|
| Product Trademark | / | Baiyi Everlasting (JBY) |
| Vehicle Model | / | JBY5180TXSBEV |
| Gross Vehicle Weight (GVW) | T | 18T |
| Overall Dimensions (L×W×H) | mm | 9000×2550×3240 |
| Total Mass | kg | 18000 |
| Curb Weight | kg | 13800 |
| Rated Payload | kg | 4070 |
| Wheelbase | mm | 5300 |
| Chassis Model | / | EQ1180GEVJ1 (Tianjin) |
| Chassis Manufacturer | / | Dongfeng Commercial Vehicle Co., Ltd. |
| Battery Brand / Type | / | CATL / Lithium Iron Phosphate |
| Voltage / Capacity / Energy | / | 618.24V / 456Ah / 281.92kWh |
| Driving Range | km | 405 |
| Drive Motor Model | / | TZ370XS-LKM1103 |
| Rated Power / Peak Power | kW | 80 / 160 |
| Water Tank Volume / Material | m³ | ≥ 8 / Q355 |
| Dustbin Volume / Material | m³ | ≥ 7 / Q355 |
| Max. Washing & Sweeping Width | mm | 3000-3500 |
| Washing & Sweeping Speed | km/h | 30-60 |
| Rated Water Pressure | Mpa | 15 |
| Rated Water Flow | L/min | 40-90 |
| Working Efficiency | % | ≥ 96 |
| Operational Noise | dB | ≤ 88 |
| Sweeping Width | m | 3.5 |
| Cleaning Speed | km/h | 30-60 |
| Max. Sweeping Capacity | ㎡/h | 50000 |
| Discharging Method / Angle | Degree | Low-level discharge / ≥ 45° |
| Charging Time (SOC: 30%-80%) | h | 2h (Fast charge) |
| Continuous Operation Time | h | 4-6 |
| Max. Speed (Fully Loaded) | km/h | 89 |
| Max. Gradeability | % | 25 |
Click the download button,you can get all machine parameters
Specialized Chassis & Advantages
The vehicle is built on the Dongfeng Tianjin EQ1180GEVJ1 pure electric chassis, designed specifically for perfect integration with sanitation systems.
- Direct Motor Power: Draws power directly from the chassis motor, eliminating the traditional PTO for maximum energy efficiency.
- Low Failure Rate: The “PTO-less” design simplifies the structure, offering fewer mechanical parts and a lower failure rate than diesel vehicles.
- Highly Reliable: Provides a more stable, maintenance-free performance, significantly reducing operating costs in complex urban conditions.

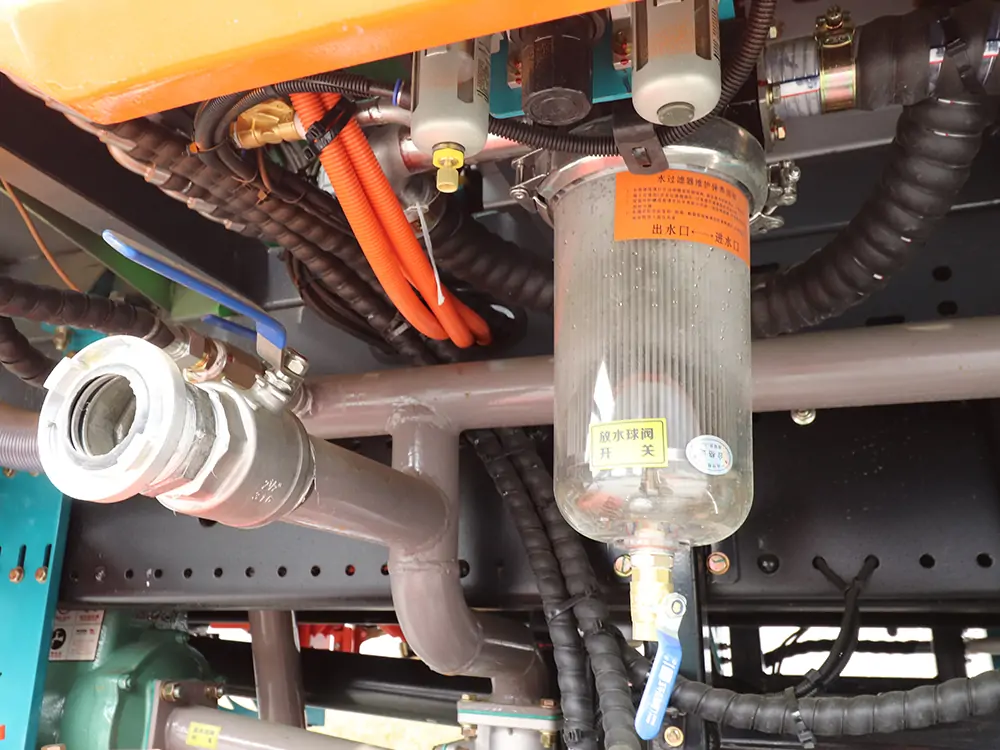

Efficient Filtration System
The vehicle is equipped with a transparent, visible filter at the bottom, allowing for real-time observation of impurities in the liquid being drawn in. This design makes it easy for the driver or operator to check the filter’s status at any time and perform timely cleaning or maintenance. This system effectively prevents large particle impurities from entering the water pump and internal pipes, protecting core components from damage, extending the equipment’s service life, and ensuring continuous and efficient vehicle operation.

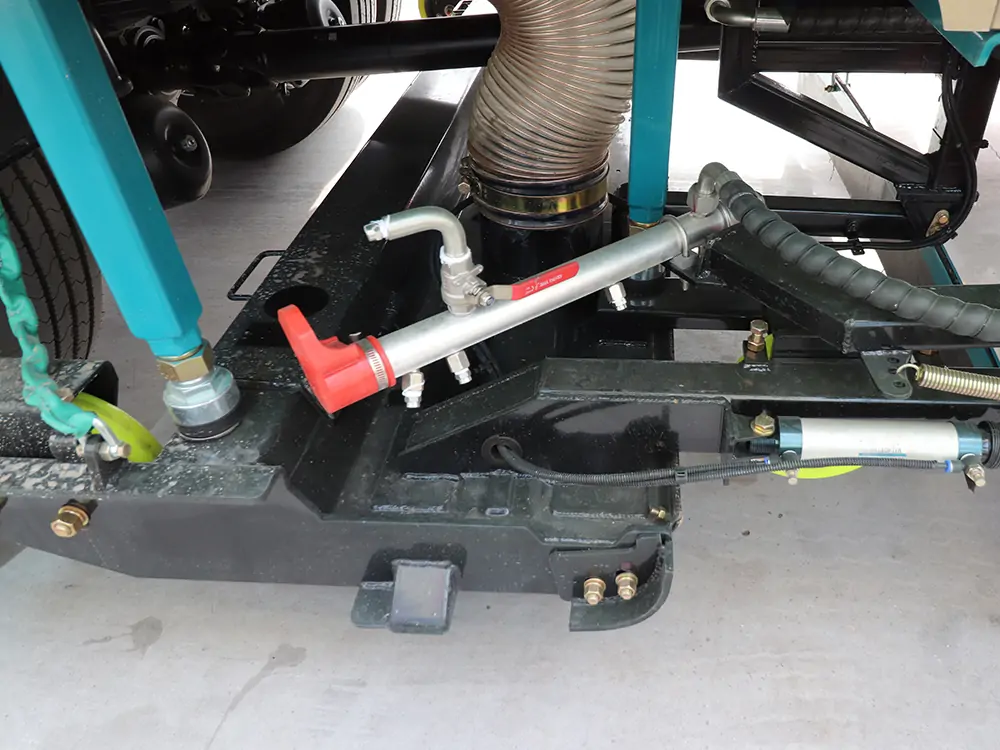

High-Efficiency Suction Nozzle
The suction nozzle has a working width of 2300 mm, ensuring a total operation width of more than 3.5 m. It is equipped with four height-adjustable nozzle wheels, allowing flexible adjustment to maintain the optimal gap between the nozzle and the road surface. Inside the nozzle, a high-pressure spray bar is integrated, with multiple nozzles strategically arranged to maximize cleaning efficiency while minimizing secondary pollution caused by water and airflow dispersing debris.
VEHICLE ADVANTAGES

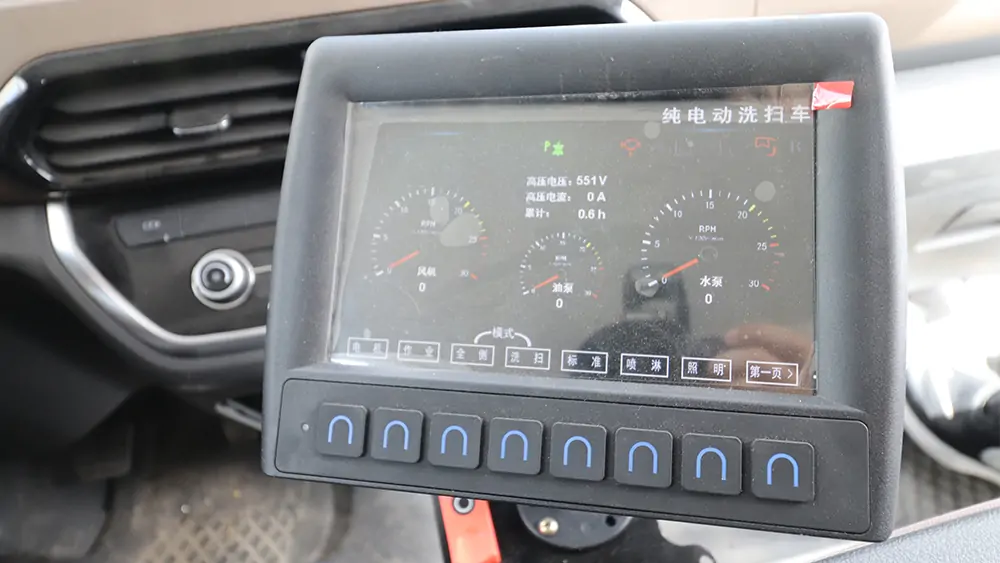

Interior Display
The vehicle is equipped with a high‑definition digital dashboard that clearly displays key vehicle information such as speed, battery status, and system operation. The intuitive interface allows drivers to easily monitor the vehicle condition in real time.

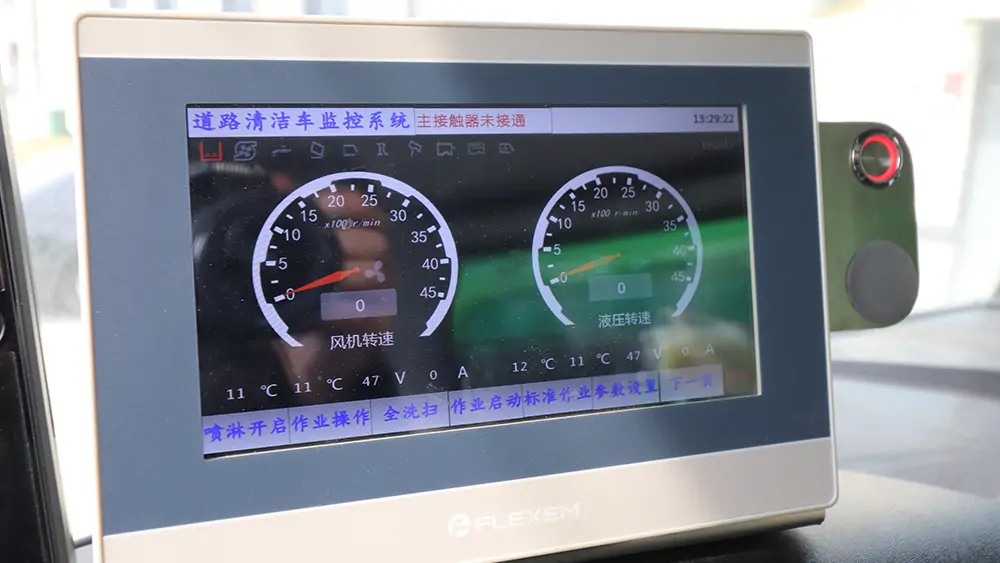

Intelligent Control System
The integrated control screen provides convenient operation of vehicle functions and sanitation equipment. With a clear interface and responsive buttons, drivers can easily monitor system status and control operations, improving efficiency and safety.

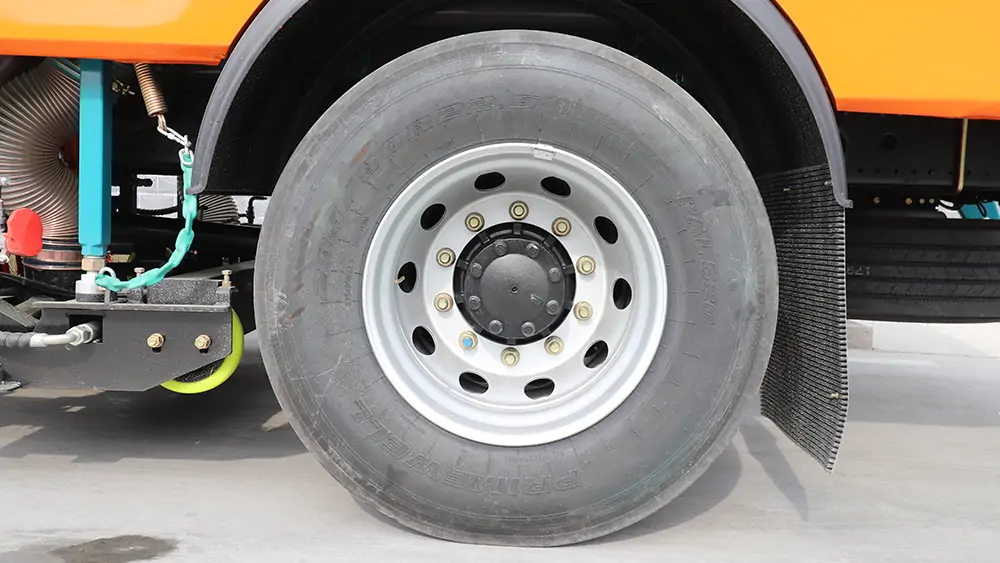

Dual‑Tire Rear Axle
