FUNCTION DISPLAY
Side Bin Design
Compact Vehicle Structure
Large Capacity Space
Hydraulic Lifting Device
PRODUCT VIDEO
Technical Paramenters
| Items | Units | Parameters |
|---|---|---|

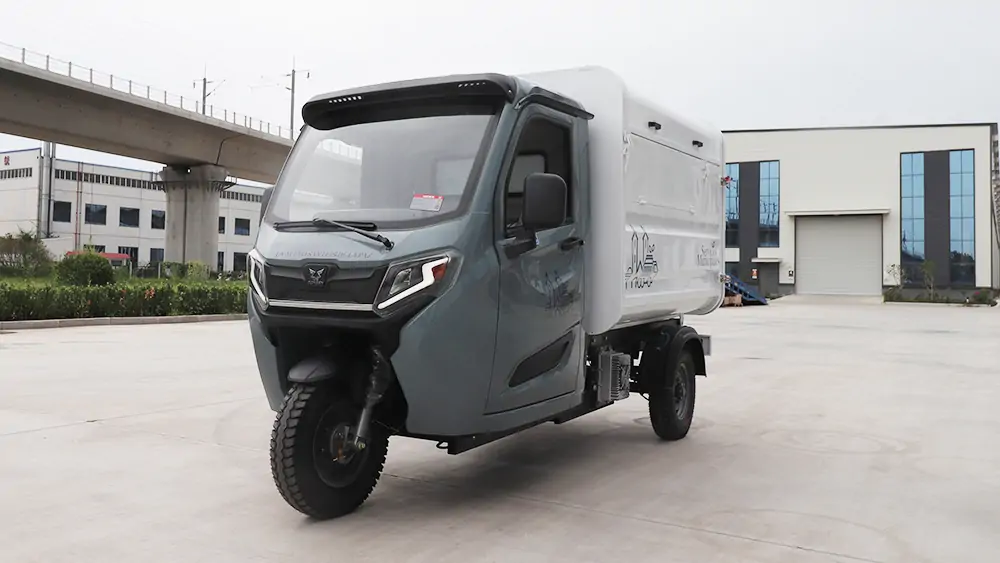

| Name and Model | Side loading garbage tricycle BY-L30 | |
| Dimensions | mm | 3500×1500×1970 |
| Garbage container size | mm | 1900×1400×1300 |
| Garbage container capacity | m³ | 3.0 |
| General weight | kg | 1305 |
| Vehicle weight | kg | 800 |
| Rated load capacity | kg | 440 |
| Max speed | km/h | 45 |
| Wheelbase | mm | 2470 |
| Tire distance | mm | 1160 |
| Tire model (front/back) | 5.0-12/5.0-12 | |
| Number of axles | 2 | |
| Tire quantity | 3 | |
| Number of seats | 1 | |
| Seating position | The front of the vehicle | |
| Working principle | DC motor | |
| Hydraulic power unit power | KW | 0.8 |
| Battery capacity | V/Ah | 72/120 |
| Trash can specifications | L | 240 |
Click the download button,you can get all machine parameters
Chassis Section
The vehicle features a renowned brand Zongshen heavy-duty electric tricycle chassis, made from truck-specific high-strength materials. It boasts strong load-bearing capacity, resistance to deformation, and has undergone electrophoretic anti-rust treatment, making it highly corrosion-resistant. (Certified and eligible for licensing)
Operating System
Designed with forward calculation matching, it features multi-way valve hydraulic control. The system offers a high degree of automation, ensuring safety, reliability, and ease of operation.
Hydraulic Control System
The multi-way valve hydraulic control system ensures precise control, smooth operation, and reliable performance, making the vehicle safer and easier to operate.
VEHICLE ADVANTAGES
Control Screen
- High-definition LCD display for easy and intuitive operation
- Spacious driver’s cabin for enhanced comfort
- Smooth, stable, and responsive driving experience
Drive System
- Equipped with a high-performance drive system for stable power output
- Compact chassis layout ensures reliable operation and easy maintenance
- Durable components provide efficient and long-lasting performance

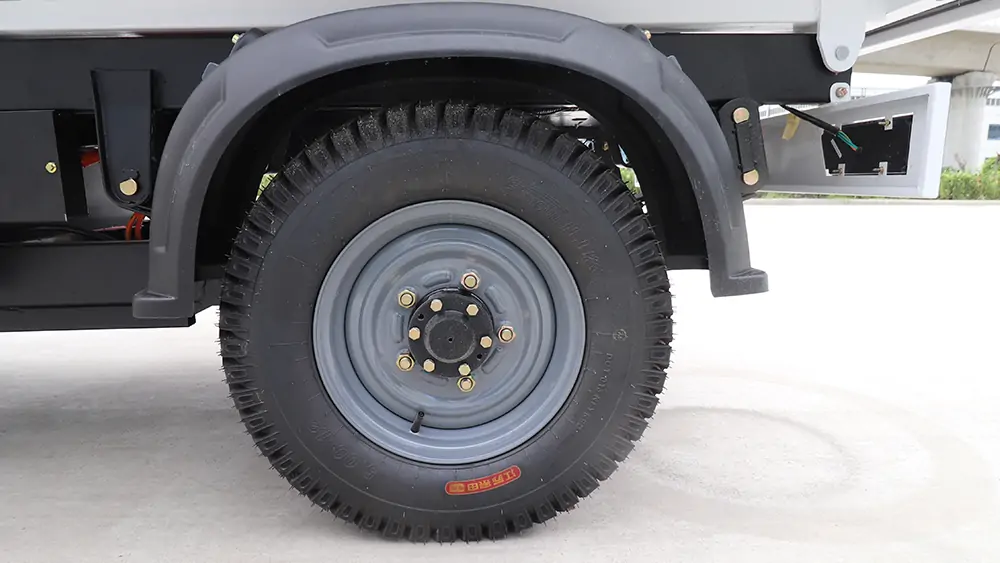

Heavy-Duty Tires
- Equipped with 5.00-12 heavy-duty tires for strong load-bearing capacity
- Excellent durability and puncture resistance for demanding road conditions
- Designed for long service life and reliable performance
