FUNCTION DISPLAY
Double sided brush+bottom suction cup

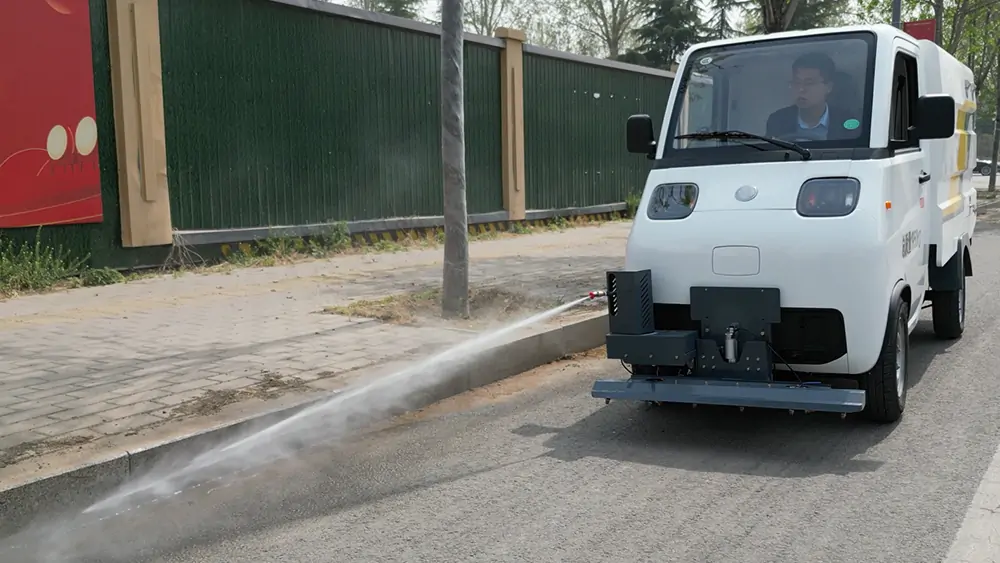

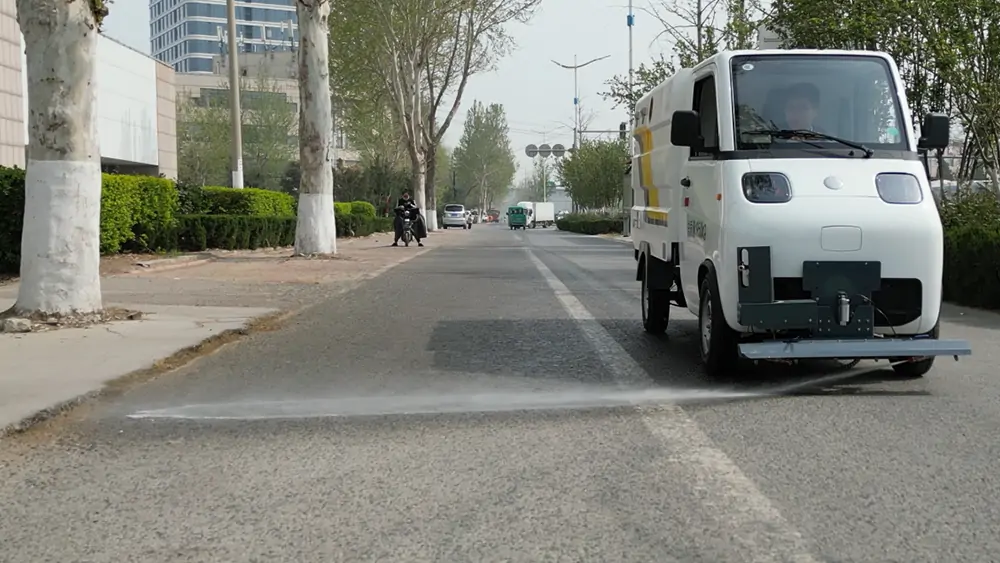

High pressure washing

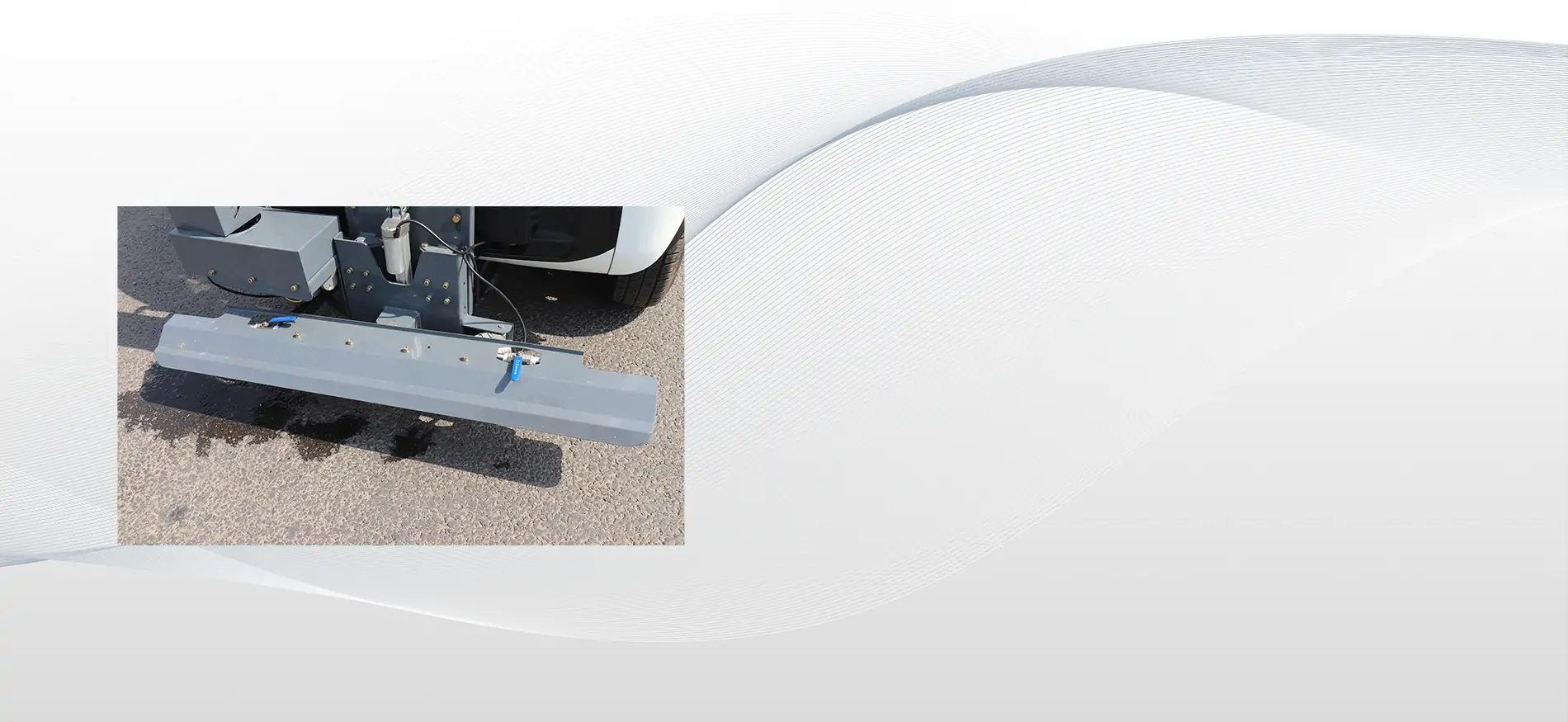

Barrier crossing high-pressure cleaning
Tail handheld straw
PRODUCT VIDEO
Technical Paramenters
| Project | Unit | Parameter |
|---|---|---|
| Curb Weight | kg | 1200 |
| Maximum Total Mass | kg | 1950 |
| Rated Payload | kg | 685 |
| Overall Dimensions (L×W×H) | mm | 4250,3920×1230×1730 |
| Minimum Ground Clearance | mm | 135 |
| Approach/Departure Angle | ° | 15/20,34/20 |
| Maximum Speed (Full Load) | km/h | 71 |
| Maximum Gradeability | % | 20 |
| Braking Distance (Full Load at 30km/h) | m | 5 |
| Minimum Turning Diameter | m | 11 |
Click the download button,you can get all machine parameters
High-Performance Chassis
The vehicle uses a new energy secondary chassis, equipped with an intelligent control system. It boasts high automation, excellent reliability, and a low failure rate. The structure is well-designed, making it easy to operate and suitable for various working conditions. The vehicle is certified and can be registered with a license plate.

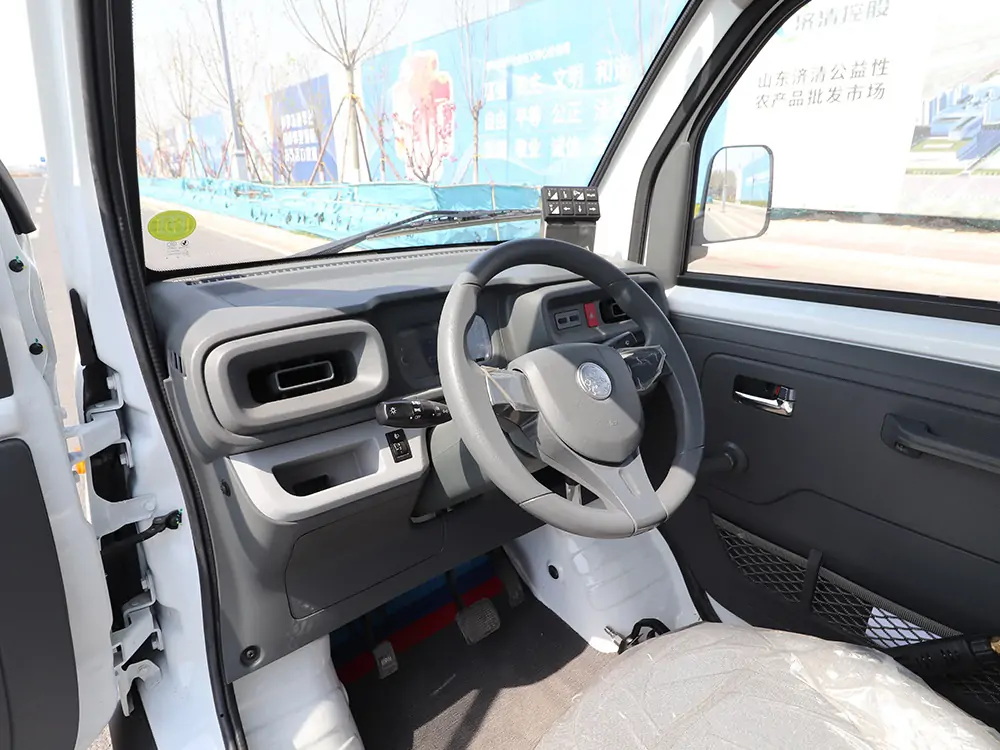

Cabin
cycle full monitoring The 5G+ smart sanitation big data operation and maintenance platform (Internet of Vehicles system) can realize precise positioning of sanitation vehicles, electronic fences, track playback, operation effect photo uploading to the big data platform, fuel consumption monitoring, vehicle command and dispatch, and garbage can overflow alarm. Scheduling nearby garbage truck transportation vehicles, driver assessment, sanitation workers punching in, intelligent garbage classification system, data formation and export and other functions. It also has on-site maintenance information collection and remote data update interface (reserved 5G AR video interface)
Powerful Drivetrain and High Safety Rating
The vehicle is equipped with a high-performance permanent magnet synchronous motor with a rated power of 10kW and a peak of 27kW, providing strong power and stable performance. Furthermore, all electrical components and wiring harnesses have a protection rating of IP67 or higher, ensuring a high level of protection and allowing the vehicle to operate safely and reliably in all kinds of environments.
VEHICLE ADVANTAGES

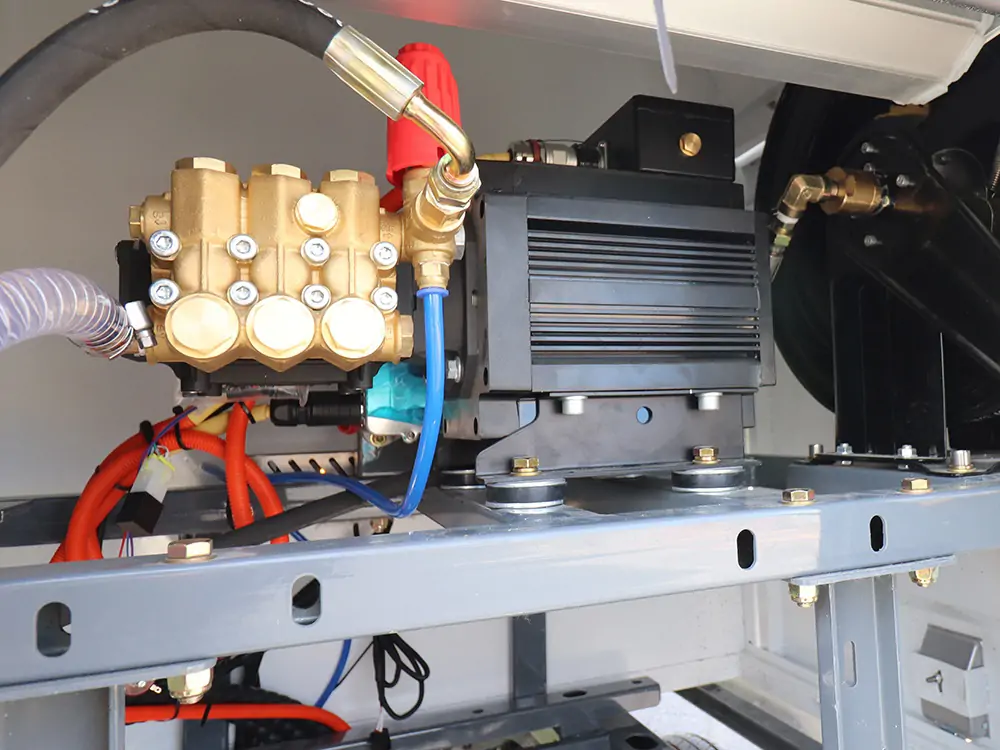

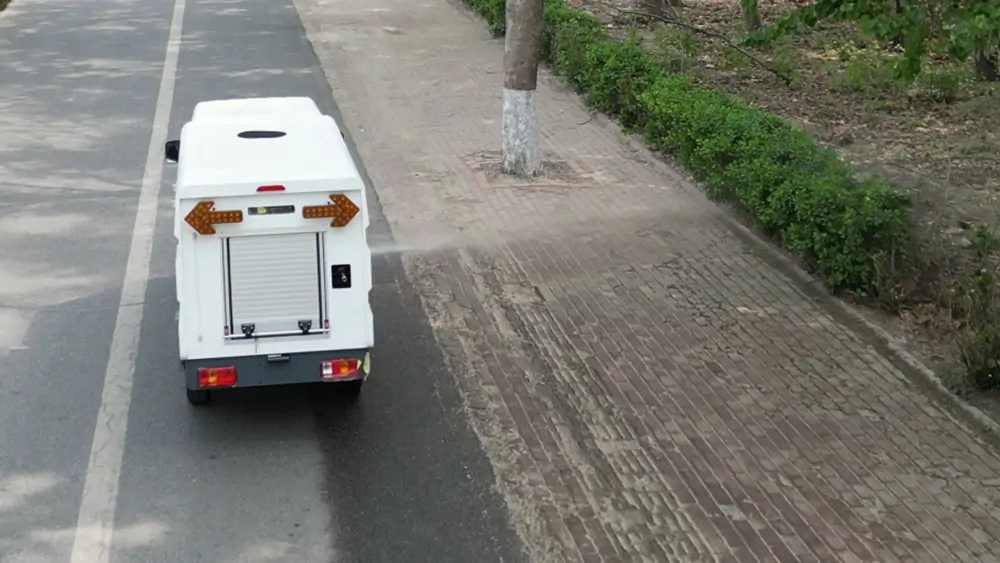

Multi-functional High-Pressure Cleaning System

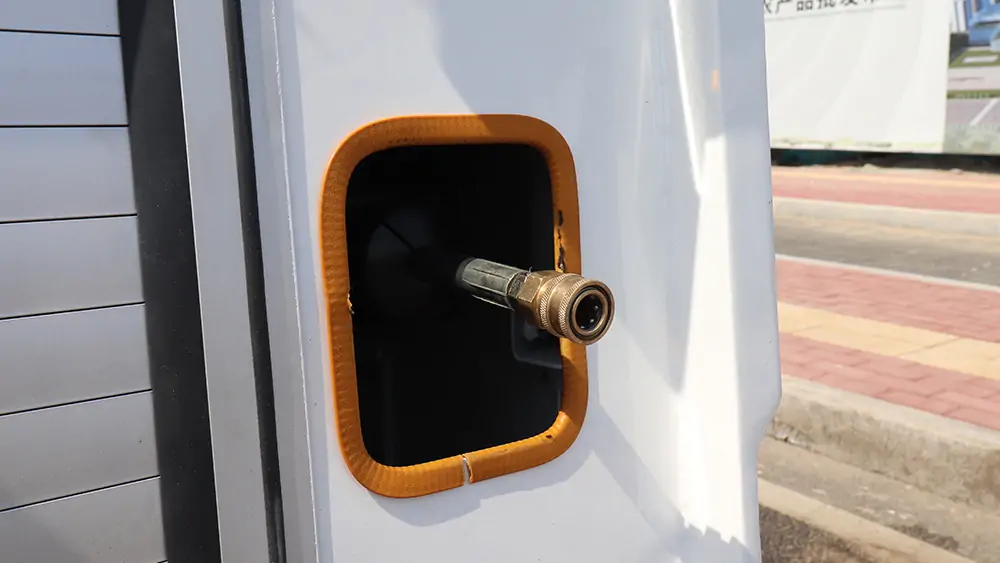

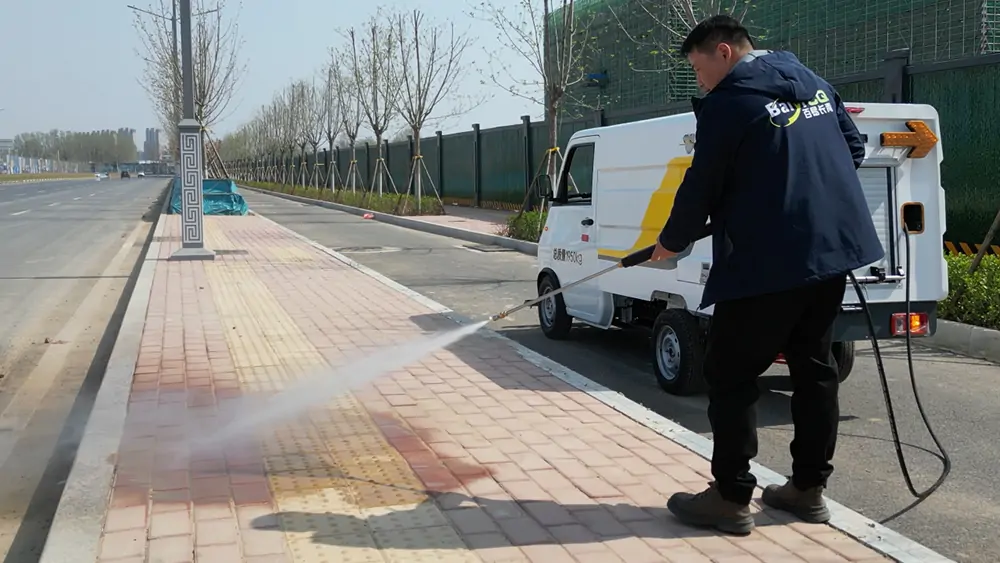

In addition to its standard road flushing capabilities, this vehicle is equipped with a practical hose reel and a handheld high-pressure water gun. This multi-functional design allows the vehicle to easily handle various tasks such as road sweeping, trash bin cleaning, and removing small advertisements. An optional handheld flushing disc is also available, which greatly expands the cleaning scope and provides a comprehensive solution.

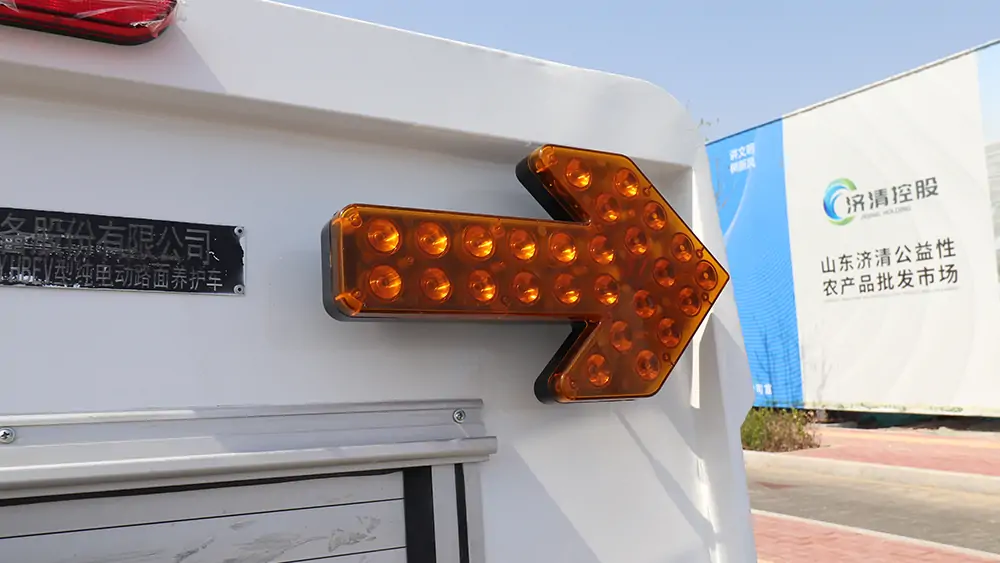

High-Brightness LED Indicators
The vehicle is equipped with high-brightness LED arrow-shaped indicator lights. Their large size and eye-catching design provide clear turning or warning signals. The LED lighting technology offers high brightness, quick response, and a long lifespan, ensuring the indicators are clearly visible to vehicles behind, even in daylight or adverse weather conditions, which effectively enhances driving safety.

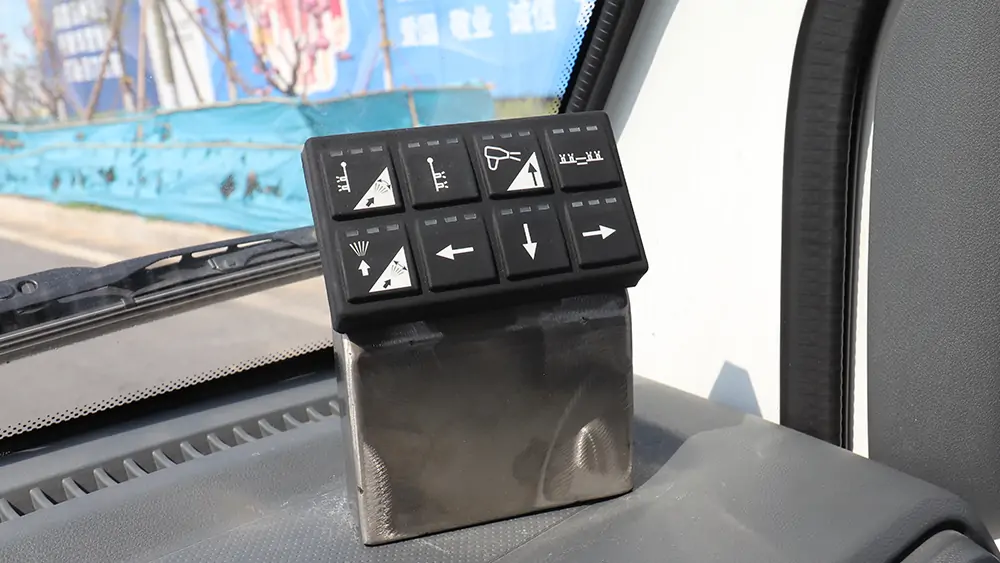

Auxiliary Function Control Panel
The vehicle is equipped with a simple and intuitive auxiliary control panel. All function buttons are designed with clear icons, making them easy to understand. Operators can effortlessly control various tasks such as sweeping, flushing, and dumping without complex training. Its compact design and logical placement further ensure the convenience and safety of the operation.
