FUNCTION DISPLAY
Side loading mode
Powerful hydraulic dumping
Large capacity for higher load
Compact design for tight spaces
PRODUCT VIDEO
Technical Paramenters
| Project | Unit | Parameter |
|---|---|---|
| External dimensions | mm | 3650×1230×2270 |
| Maximum total mass | kg | 1700 |
| Curb weight | kg | 800 |
| Maximum speed | km/h | 35 |
| Water tank capacity | L | 750 |
| Water tank filling time | S | 100 |
| Water tank outflow time | S | 95 |
| Fire Monitor Range | m | 40 |
| Braking distance | m | 2.6 |
| Fuel tank capacity | L | 6.5 |
| Wheelbase | mm | 2300 |
| Track width | mm | 1025 |
| Tire specifications | / | 3.5-16/4.5-12 |
| Motor power | V/W | 60V 1500W |
| Minimum turning radius | m | 4 |
Click the download button,you can get all machine parameters
High-Performance Chassis
Built on a 1.95-ton light-duty, heavy-load sanitation Class II chassis, featuring front MacPherson independent suspension and rear non-independent leaf spring suspension. The upper structure adopts an intelligent control system with a high degree of automation, strong reliability, low failure rate, and user-friendly operation. The vehicle is equipped with a high-voltage system supporting both DC fast charging and AC slow charging. Additional features include electronic power steering, hydraulic braking, front disc/rear drum brakes, air conditioning (cooling and heating), standard ABS, and reversing radar. It also comes with EPS steering assist and an EBS brake vacuum assist system, ensuring flexible steering and reliable braking.

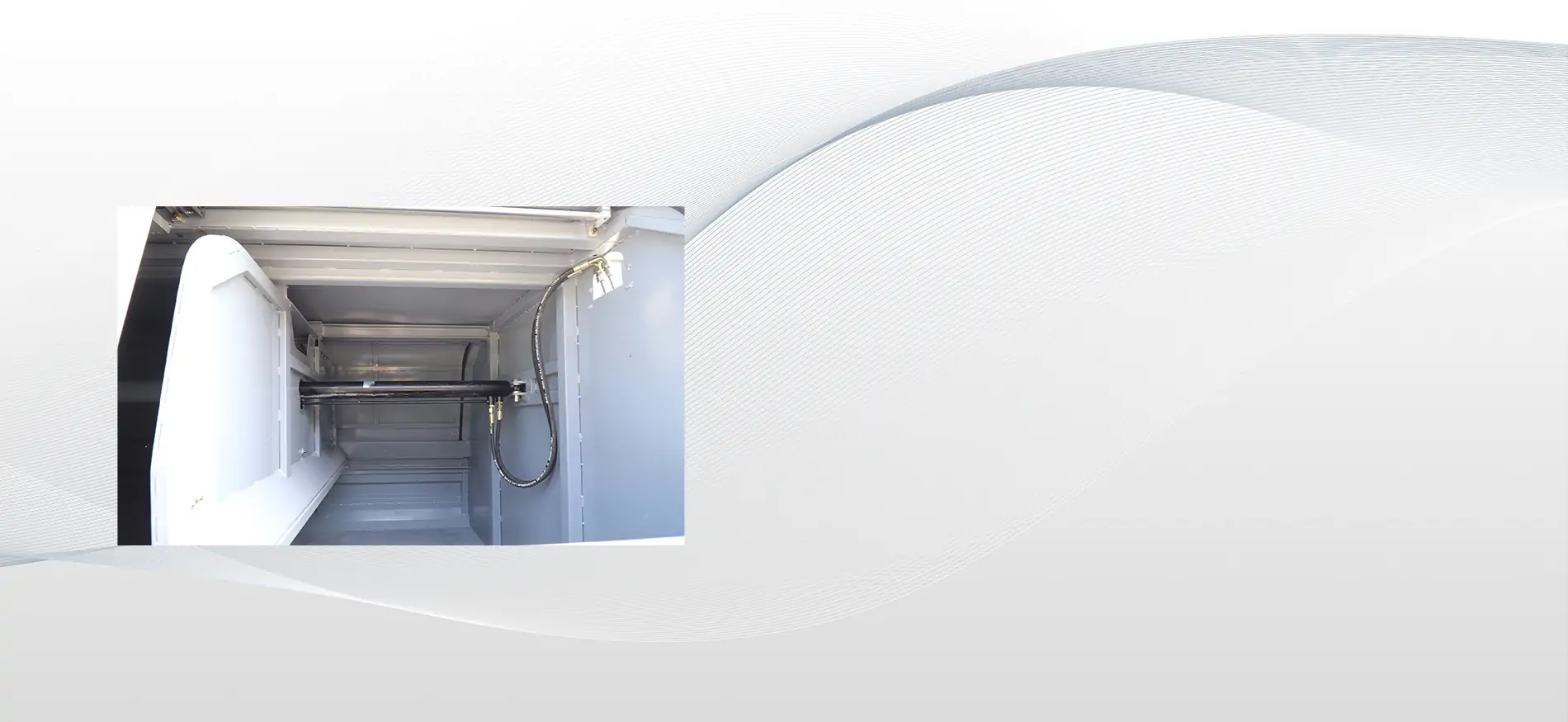

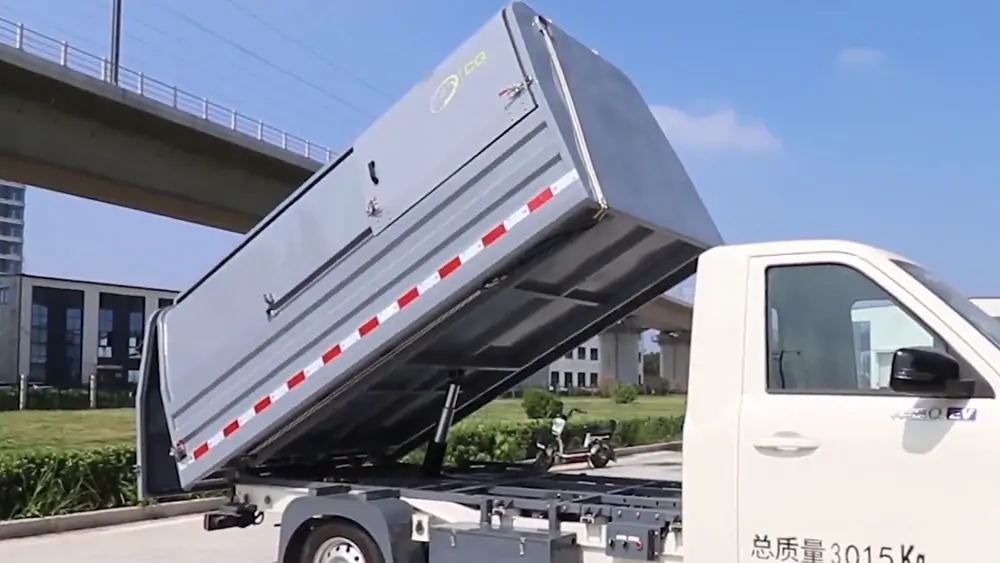

Hydraulic Automatic Dumping
This vehicle is equipped with a powerful hydraulic lifting system that enables the automatic tilting and dumping of the cargo box. This design eliminates the need for manual unloading, is easy to operate, and can quickly and efficiently empty waste or materials from the box. It significantly saves time and labor costs and dramatically improves operational efficiency.

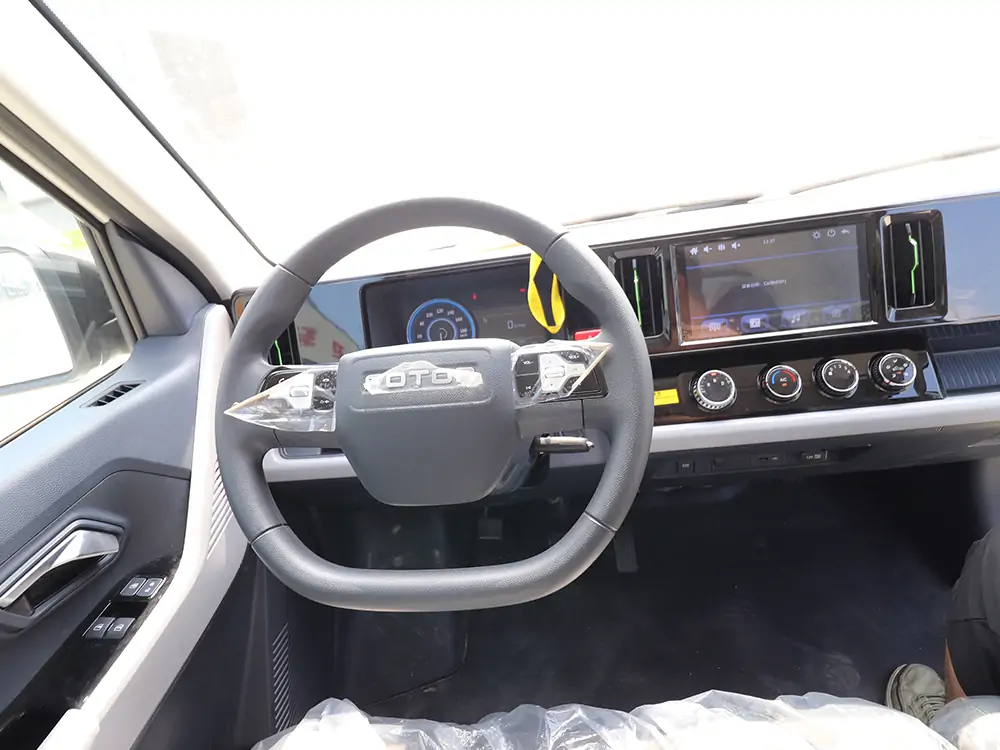

Modern and Smart Cab
The vehicle’s cab features a modern design, equipped with a full digital instrument cluster and a large central integrated screen, providing clear and comprehensive vehicle information and entertainment functions. A multi-function steering wheel and a user-friendly central control layout make all operations easily accessible, greatly enhancing driving convenience and safety, and creating a comfortable, smart working environment for the driver, much like a passenger car.
VEHICLE ADVANTAGES
Convenient Side Control Box
The vehicle uses a Chinese national standard DC charging port, with the interface conveniently located on the side of the body for easy operation. This design is compatible with most mainstream charging piles on the market, facilitating rapid energy replenishment for the vehicle. It effectively reduces charging time and ensures the vehicle’s continuous operational capability, serving as a crucial guarantee for the efficient performance of a pure electric sanitation truck.

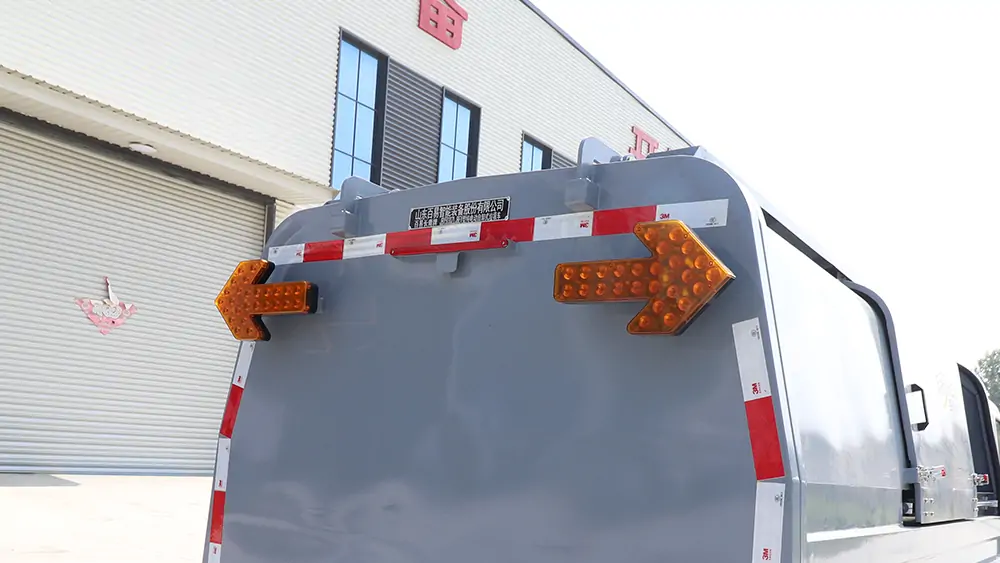

High-Visibility Safety Indicators
The rear of the vehicle is equipped with eye-catching LED arrow indicators. Their large size and unique arrow shape provide clear and unambiguous turning and warning signals. This design significantly enhances the vehicle’s visibility and driving safety, effectively protecting vehicles and pedestrians behind it, especially at night or in adverse weather conditions.

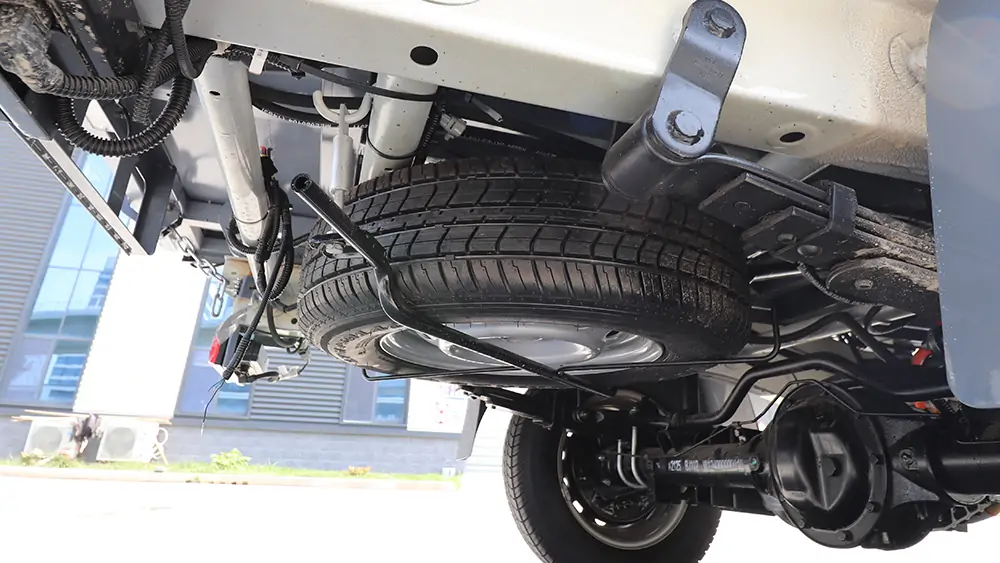

Practical Spare Tire and Robust Suspension
The vehicle’s underside features a practical design, with the spare tire cleverly placed beneath the chassis to save valuable cargo space while remaining easily accessible. Additionally, the rear wheels are equipped with sturdy leaf spring suspension, which provides excellent load-bearing capacity and reliability. This setup can easily handle heavy-duty transport and complex road conditions, ensuring the vehicle operates with stability and reliability.
