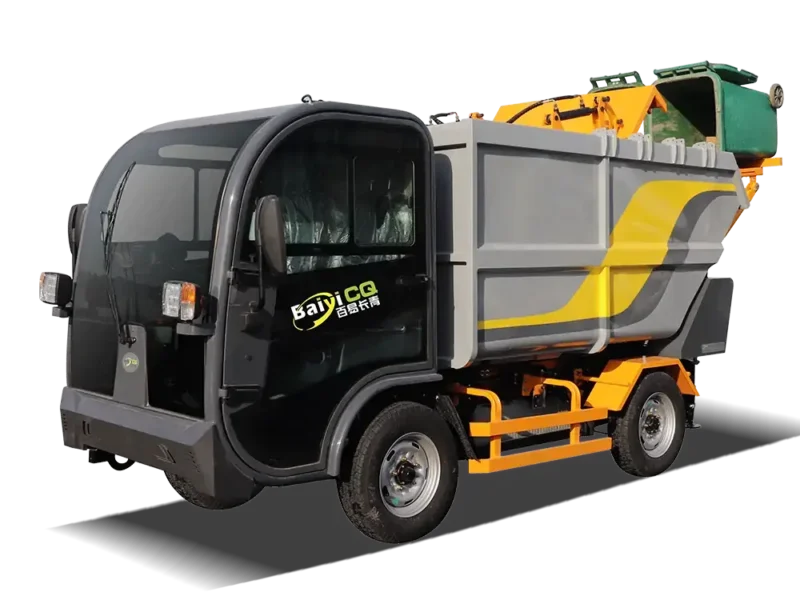

FUNCTION DISPLAY
Self-unloading compartment design
Steel four-link bin lifting mechanism suitable
Equipped with a scraper for simple compression
Tail handheld straw
PRODUCT VIDEO
Technical Paramenters
| Items | Units | Parameters |
|---|---|---|
| Curb weight | kg | 1900 |
| Gross vehicle weight | kg | 3400 |
| Payload | kg | 1500 |
| Dimensions (L x W x H) | mm | 4150*1450*2000 |
| Wheelbase | mm | 2050 |
| Min. ground clearance | mm | 200 |
| Volume | m³ | 3.5 |
| Loading trash bin capacity | L | 120/240/660 |
| Water tank volume | L | 20 |
| Hanging bin/setting bin time | s | 8 |
| Unloading time | s | 30 |
| Unloading angle | ° | 85 |
| Unloading height | mm | 1200 |
| Cruise range | km | 80-120 |
Click the download button,you can get all machine parameters
Chassis Section
Frame material selection of truck special plate, vertical and horizontal beam as a whole cold riveting splicing process, high strength, strong load capacity, not easy to deformation, electrophoretic rust treatment, corrosion resistance
Operating System
forward design calculation matching, multi-way valve hydraulic control, high degree of system automation, safe and reliable overcontrol convenient.
Bin Lifting Mechanism
Steel four-link hanging bucket tilting mechanism, and with slider lifting and self-locking press bucket function. 120 liters, 240 liters of standard garbage can be lifted self-tilting, post-loading bucket, more convenient to use; Smooth action, high degree of automation.
VEHICLE ADVANTAGES
Long Endurance
The vehicle is equipped with Tiannen brand 72V 200AH maintenance-free lead-acid battery, which has stronger endurance, more stable performance, safe and reliable, and guaranteed quality.
Strong Load Capacity
The vehicle is equipped with well-known brand 185/R14 LT heavy duty vacuum tires, strong load capacity, wear resistance, not easy to leak air, long service life
Smart Sanitation(optional)
Equipped with 360-degree panoramic camera, easy to observe the surrounding environment.-
